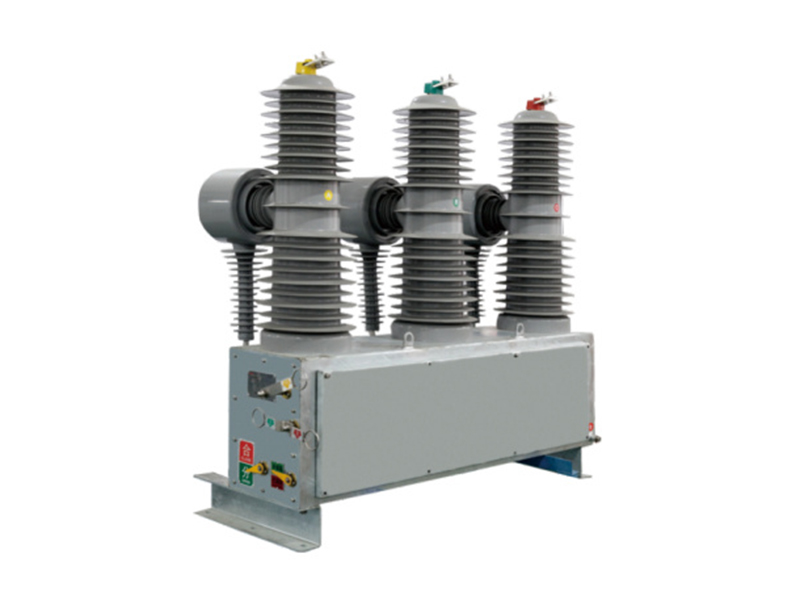

The ZW32-40.5(F)series outdoor high-voltage (permanent magnet,spring)vacuum circuit breaker utilizes a uniquely designedpermanent magnet mechanism(or spring mechanism) and a highlyreliable intelligent controller. This device is primarily used in high-voltage overhead line power grids for load current interruption,closing, overload current, and short-circuit current. lt also featuresautomatic reclosing for 0-3 cycles.
Main Features
Extremely high reliability.
Completely maintenance-free throughout its entire lifespan.
High mechanical and electrical lifespan.
Compact size and lightweight for easy installation.
Standard relay protection and quick automatic reclosing function.
Ambient condition
Altitude: Up to 2000m;
AmbientAirTemperature:-30'C to +60°C;
Wind Speed:s34m/s;
Vibration or seismic activity from external sources on the switchgear and control equipment is negligible;Pollution Level:Level lV;
Storage Temperature:-40°C to +85°C
