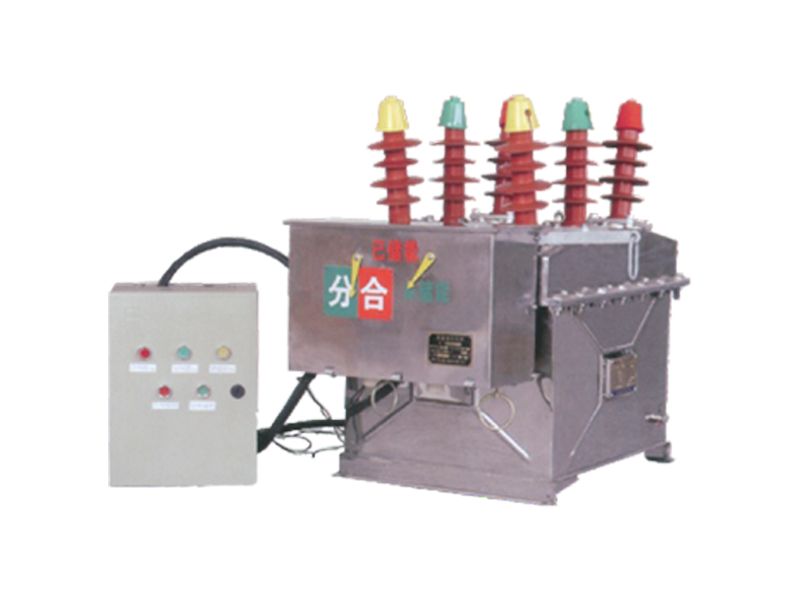

ZW8-12(G)/T Outdoor High Voltage AC Vacuum Circuit Breaker

This circuit breaker is a three-phase AC 50Hz outdoor high-voltage switchgear primarily used in 12kV systems for agricultural and urban networks. It serves the purpose of switching, closing, and opening under load, handling overload currents, and dealing with shortcircuit currents. It can also be applied in similar environments.
Inquiry

Product details

Ambient condition

Altitude: Up to 3000 meters
Ambient Air Temperature: Upper limit +40°C, Lower limit -40°C
Wind Pressure: ≤700Pa (equivalent to a wind speed of 34m/s)
Air Pollution Level: ≤IV
Ice Thickness: ≤10mm
No risk of fire, explosion, chemical corrosion, or severe vibration

ZW8-12(G)/T


ZW8-12(G)/T


ZW8-12(G)/T
