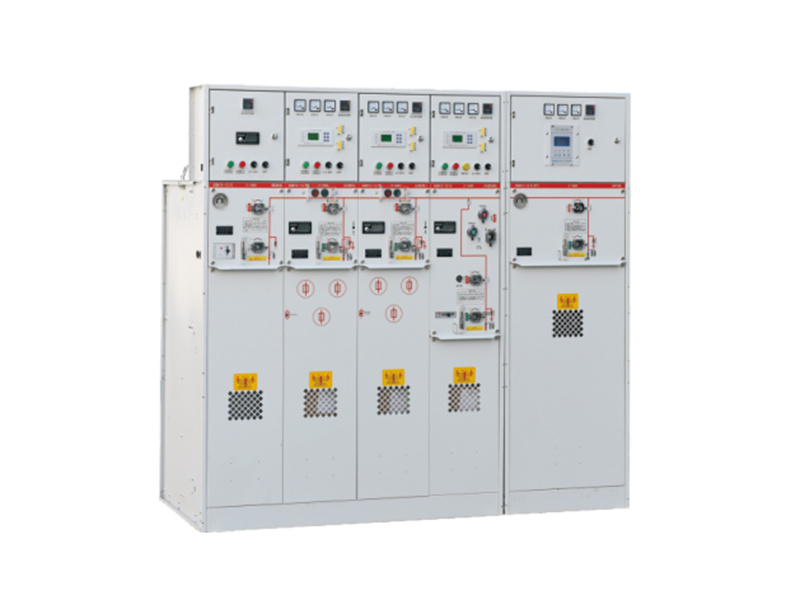

RM6-12 Fully Enclosed Common Box Type Inflatable Cabinet is amodular unit that can be combined for different purposes. lt consistsof fixed units and expandable units, meeting the flexible needs ofcompact switchgearin various substations.The RM6-12 is a fully sealed system with all live parts and switchesenclosed in a stainless steel shell. The entire switchgear operatesindependently of external environmental conditions, ensuringreliability, personal safety, and maintenance-free operation. The useof expandable busbars allows for any combination, achieving fullmodularity.The expandable busbars feature safe insulation andshielding,ensuring high reliability and safety. The RM6-12 alsoprovides a TV-like automation solution, introducing the concept ofintelligent switches and minimizing on-site installation andcommissioning work.
The RM6-12 is available in non-expandable standard configuration andexpandable standard configuration, offering exceptional flexibility dueto its full and semi-modular combinations and inherent expandability.The RM6-12 is complies with GB standards and has a design life ofover 30 years underindoor conditions (20°C).
