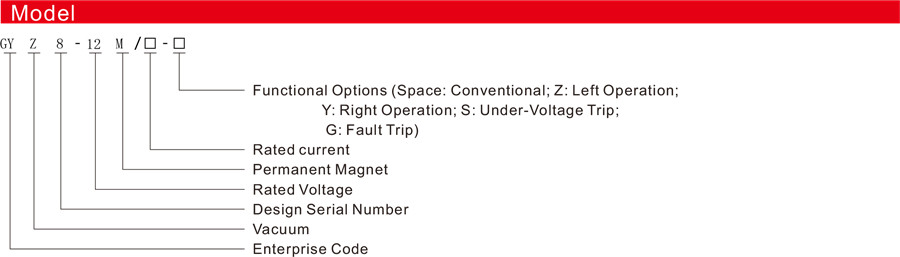

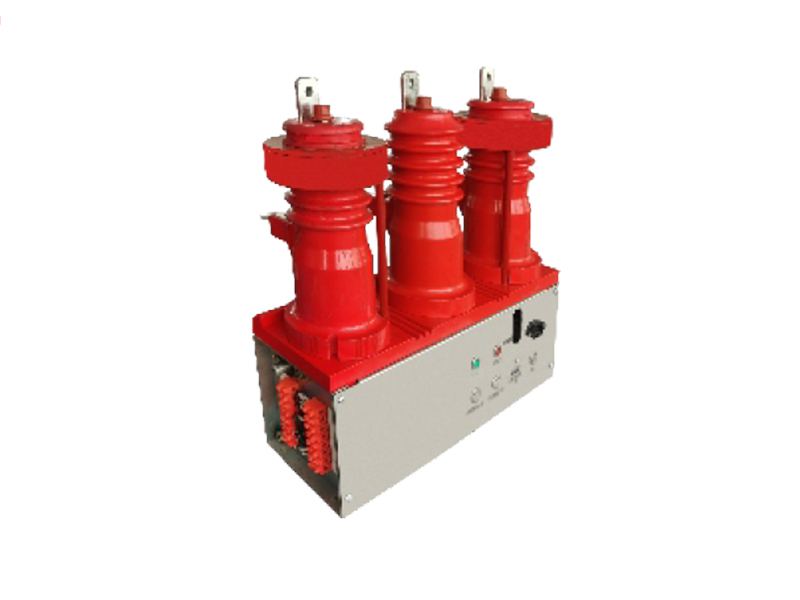

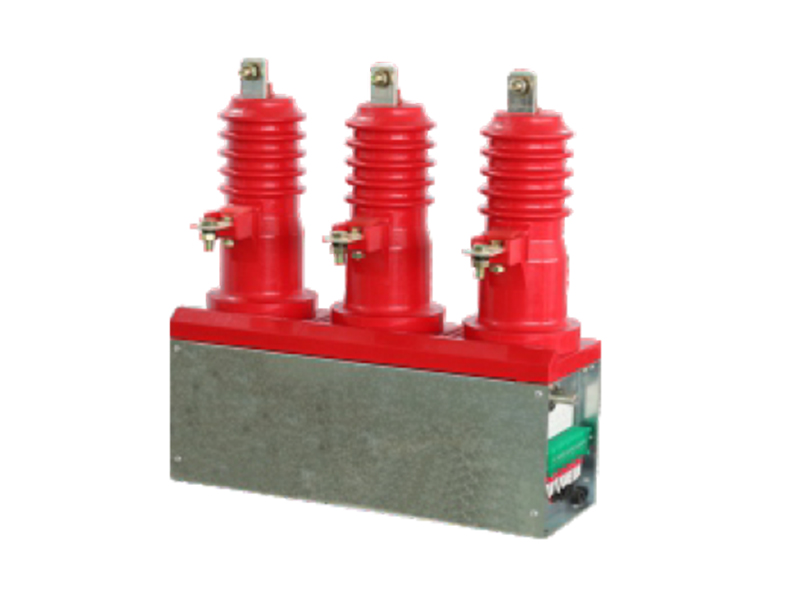

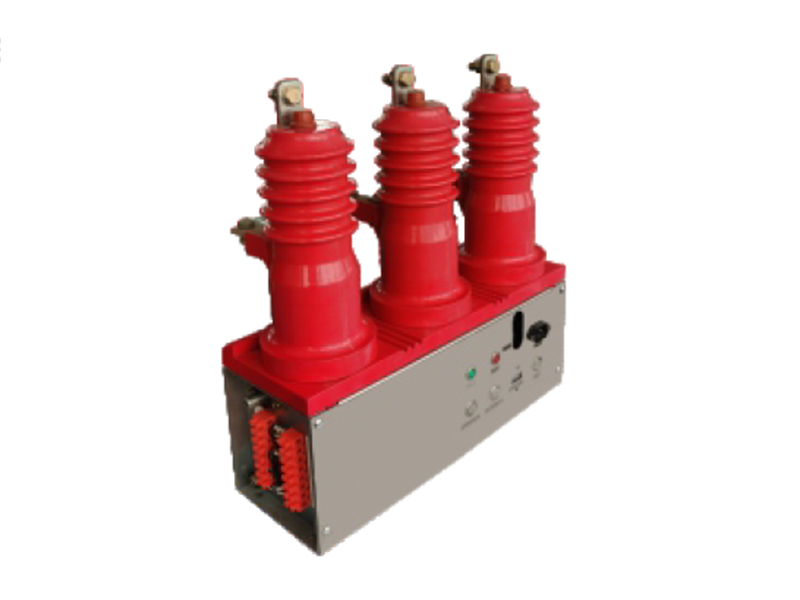

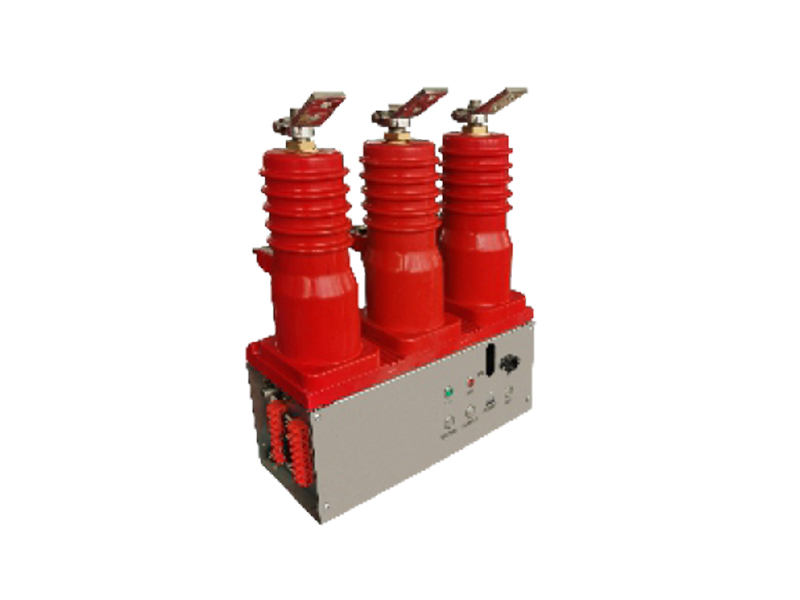

The GYZ8-12M/口-口 High-Voltage Permanent Magnet Miniature Vacuum Circuit Breaker (hereinafter referred to as the circuit breaker) is characterized by its cost-effectiveness, frequent operations, and high lifespan. It is commonly used for 10kV highvoltage prepaid metering switching, 10kV reactive power compensation cabinet switching, and the opening/closing functions in compact cabinet sets. It can interrupt and close unloaded currents, load currents, and short-circuit currents within the specified range. After capacity reduction, it can also be used in capacitive load circuits.
Ambient condition
Altitude: Installation altitude of up to 2000m (Specify for altitudes exceeding 2000m during ordering).
Ambient Temperature: Upper limit of ambient air temperature: +40°C, daily average temperature ≤ +35°C; Lower limit
of air temperature not less than -20°C.
Relative Humidity: Daily average ≤ 95%, monthly average ≤ 90%.
Location: No explosion, no corrosion, no fire hazards, no severe pollution, no severe vibrations.
Wind Speed: ≤34m/s.
Installation Surface Inclination Angle with the Ground: Not greater than 15°.
