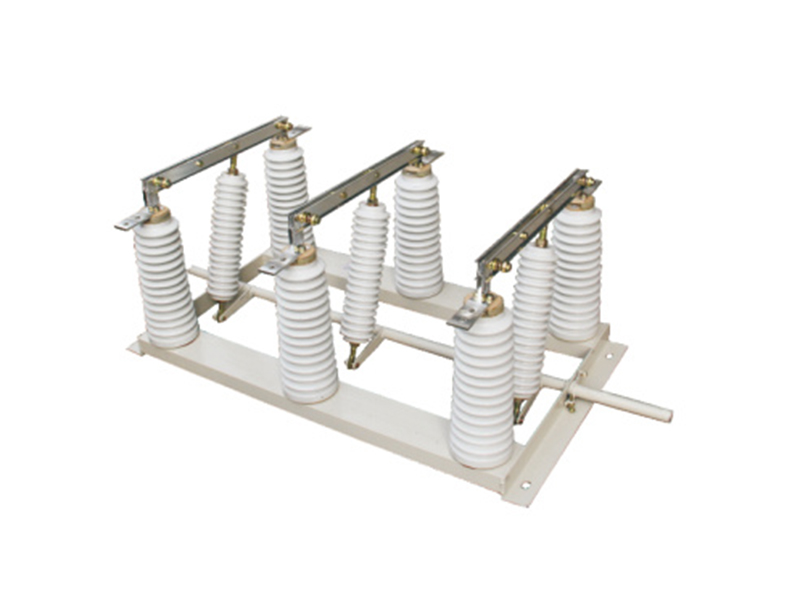

The GN27 series indoor high-voltage disconnect switch is designedfor locking voltages in a three-phase electrical system with a voltagerating of 35kV and an AC frequency of50Hz. ltis used for connectingand switching circuits under loaded conditions.This product is equipped with the CS6-2 manual operatingmechanism. When equipped with D, it is paired with the CS6-1manual operating mechanism.
Ambient condition
Altitude:≤1000m
Ambient Air Temperature:≤+40°C,2-25°C
Relative Humidity: Daily average s95%, Monthly average ≤90%
Water Vapor Pressure: Daily average ≤2.2x10-3MPa, Monthly average ≤1.8x10-3MPaNo fire hazards, explosive environments, corrosive metals, harmful gases damaging insulation, or conductive dust in the vicinity.
